Slim Series supports full front-maintenance installation, with no need to keep maintenance access, saving space, The surface adopts our unique black technology patented technology, which is anti-scratch, and moisture-proof, display effect is more brilliant. Safe, moisture-proof, dust-proof, anti-oxidation, anti-static.Adopting fully flip-flop light-emitting chips, power consumption is reduced by 20% under the same brightness condition.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. Seeing Led Team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
Seeing Led Team

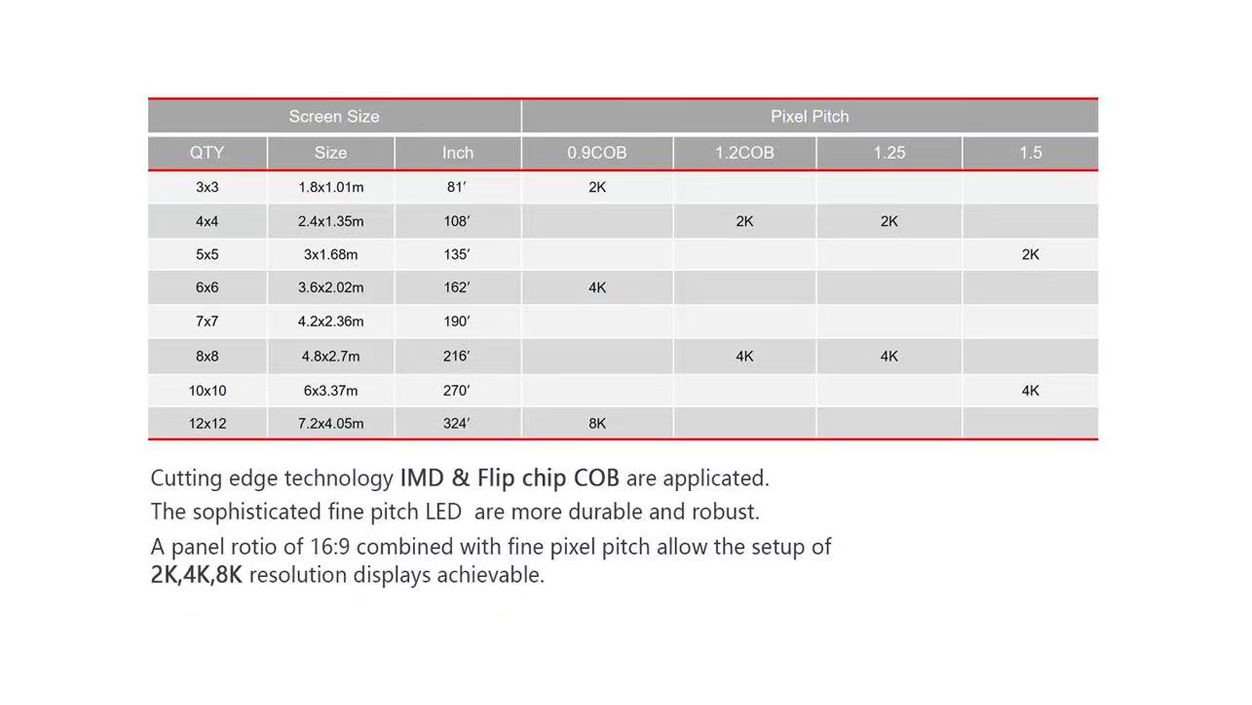

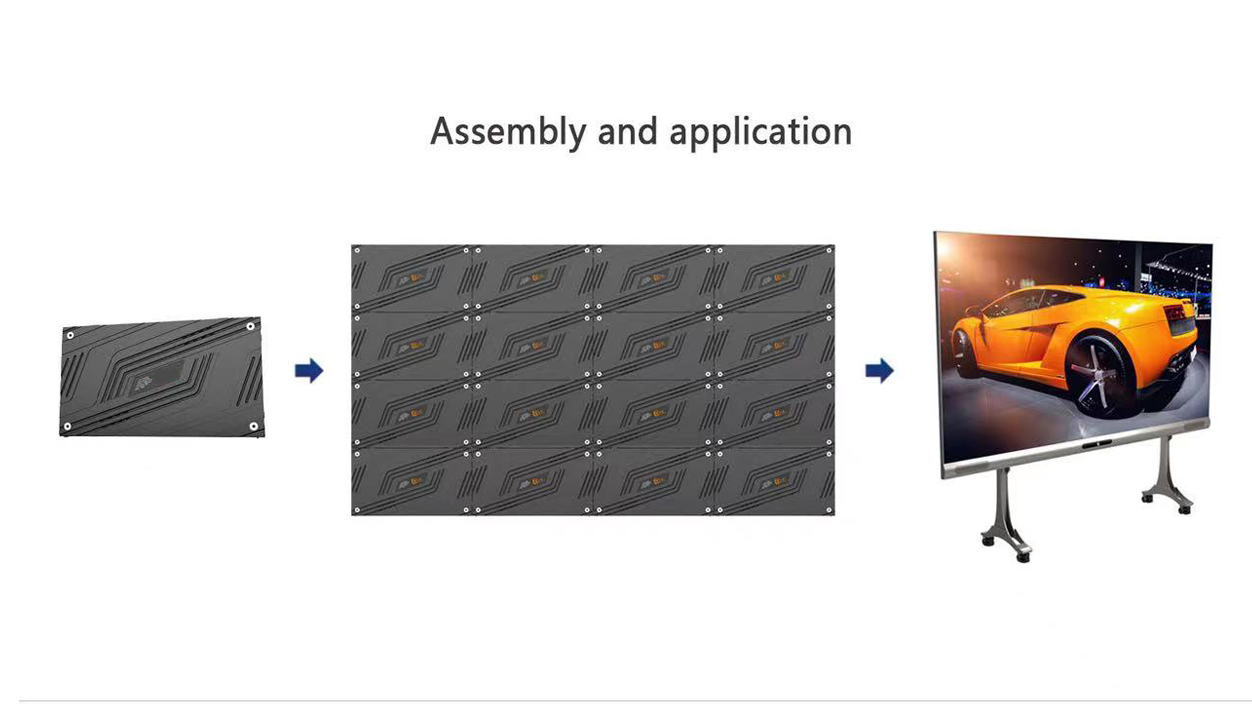

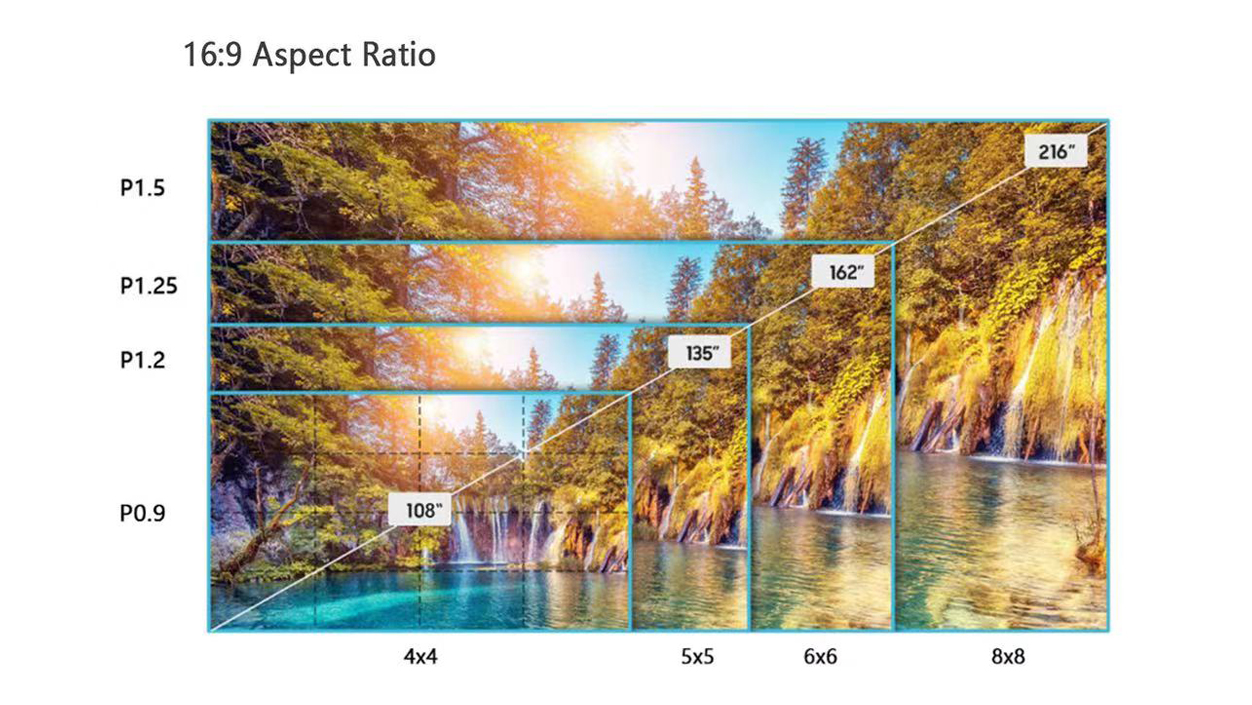

Designed in 16:9 aspect ratio, Slim Series is ultra friendly to assemble LED walls in 2K, 4K, 8K, etc.

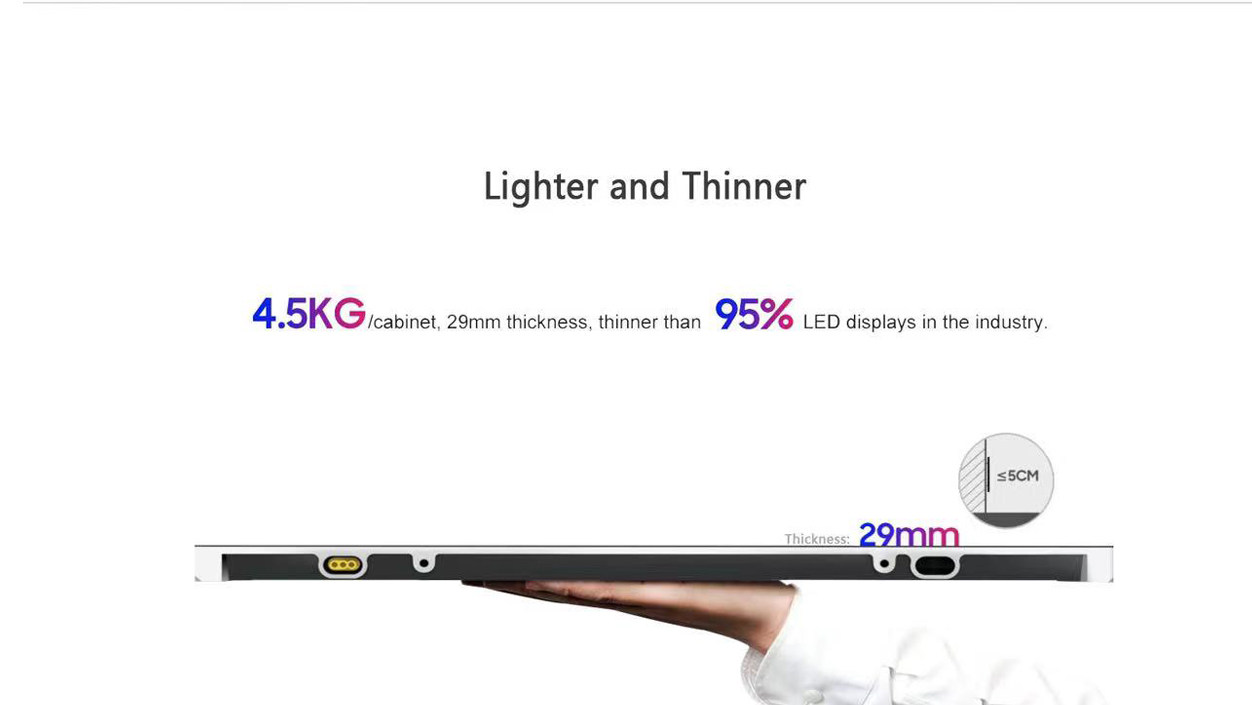

4.5KG / cabinet, 29mm thickness, thinner than 95% LED displays in the industry.

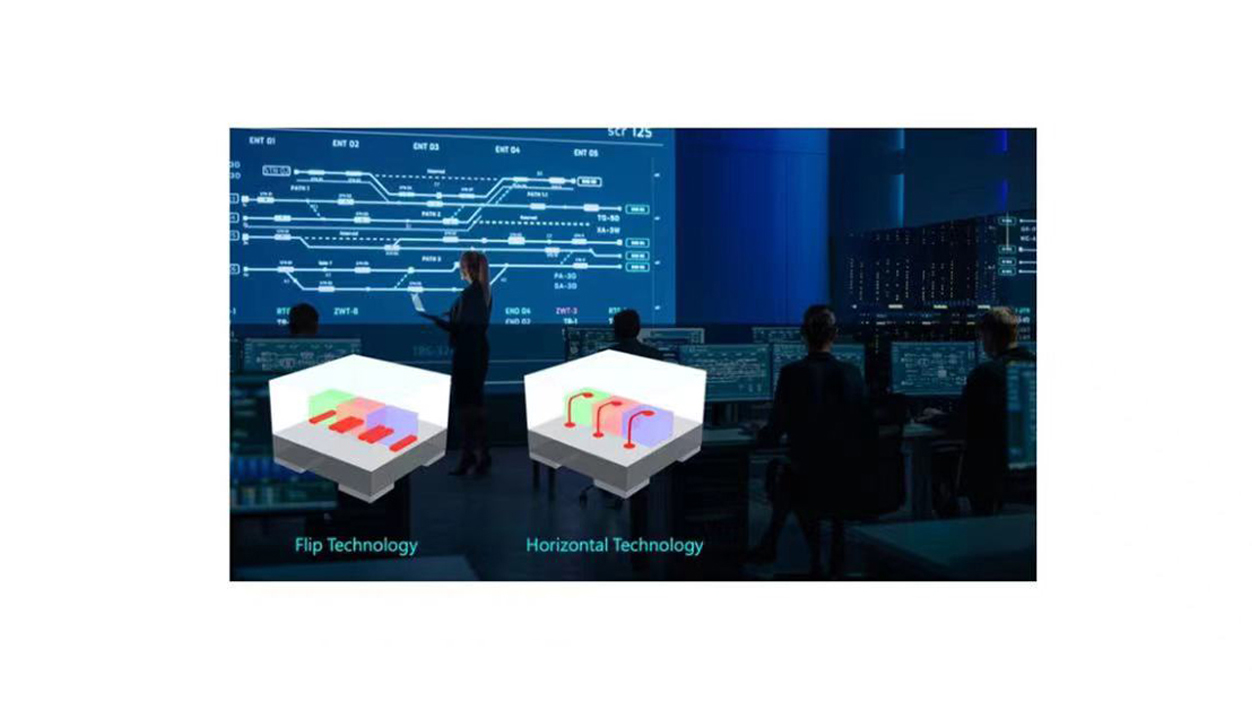

Slim adopts the latest RGB flip technology, it is more stable and there will be no dead lights during use.

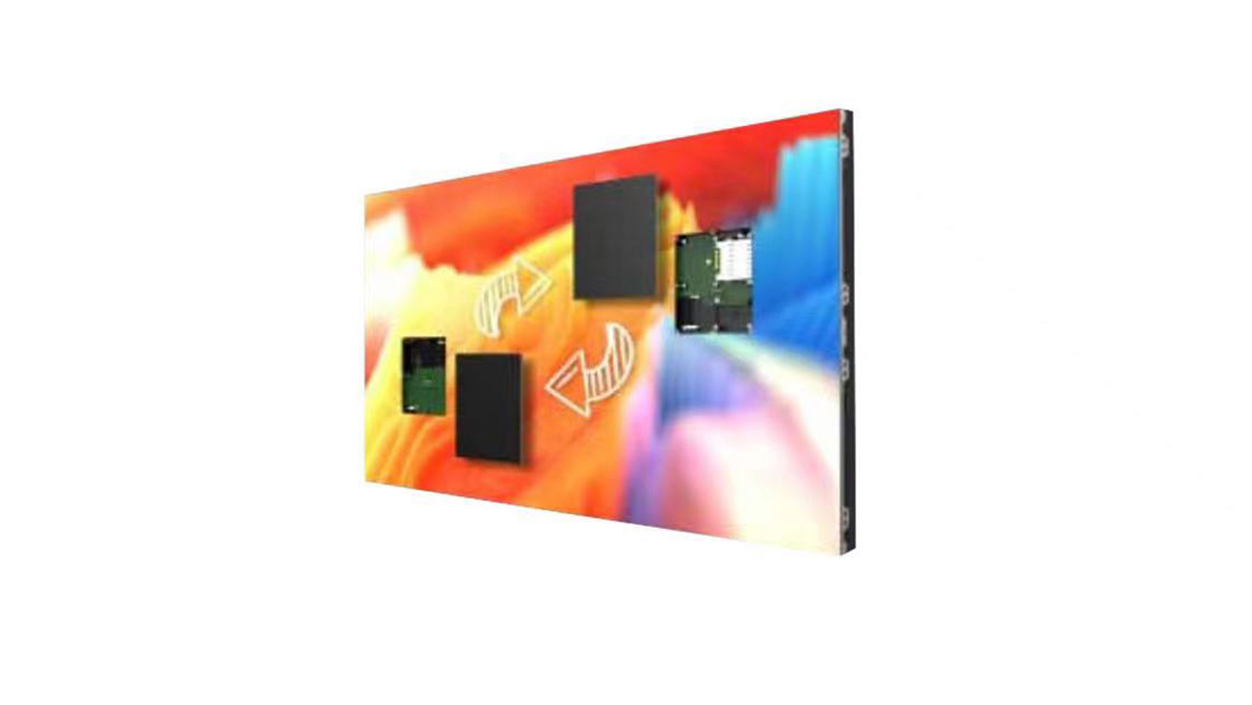

Slim MiniCOB series adopted single-module calibration technology, which is more convenient to install and disassemble; no need to calibrate the whole screen, realize fast maintenance.
Civil scene level protection and safety, moisture-proof, dustproof, knock against, low noise, low light, low radiation.

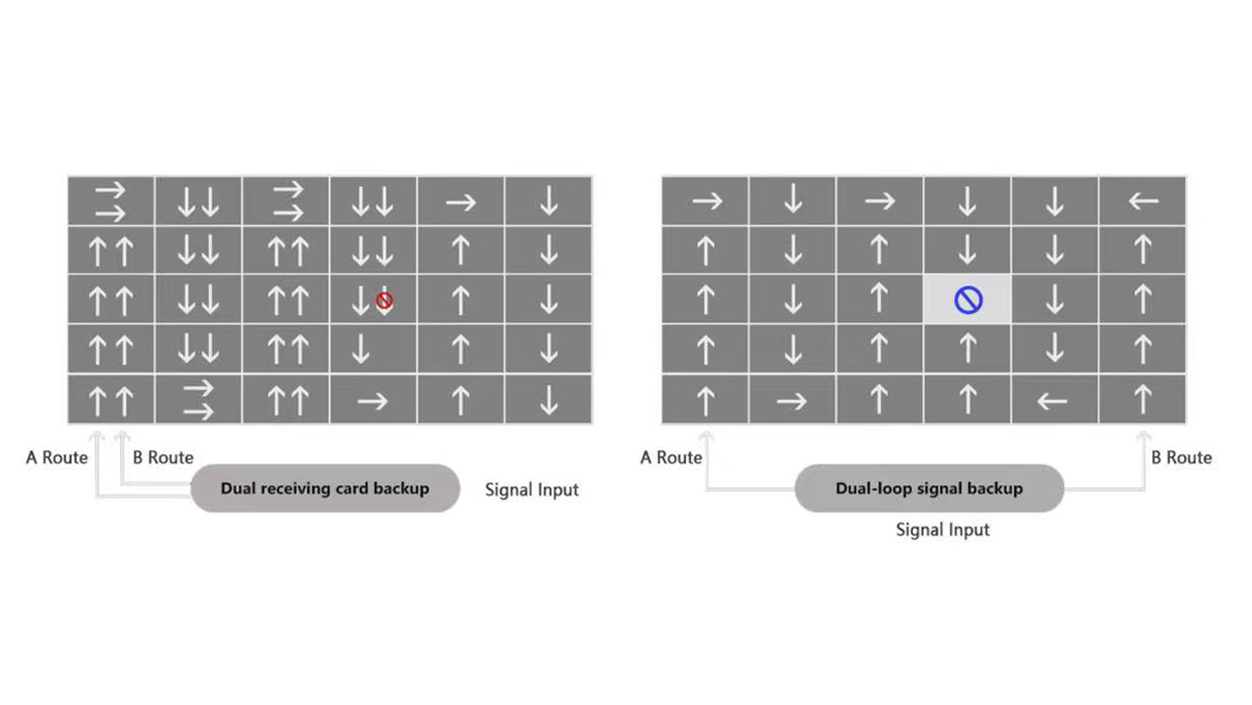

Dual redundancy power supply guarantees normal operation in case of any damage of one power supply. Dual-loop signal backup with each cabinet automatically detects the signal integrity. Dual receiving card hot backup meets the needs of high requirements for display effect.
| Item | P0.9 | P1.2 | P1.5 |
| Pixel Pitch (mm) | 0.9375 | 1.25 | 1.5625 |
| Module Resolution | 160 × 120 | 120 × 90 | 96 × 72 |
| Module Size (WxH) | 150 × 112.5 | 150 × 112.5 | 150 × 112.5 |
| Pixel Density (pixels/m²) | 1,137,777 | 640,000 | 409,600 |
| Cabinet Size (WxH) | 600x337.5 | ||
| Cabinet Weight (kg/pc) | 4.5±0.5 (Kg) | ||
| Cabinet Material | Die-cast aluminum | ||
| Ingress Protection | IP32 | ||
| Maintenance | Front | ||
| Refresh Rate (Hz) | 3840 | ||
| Brightness (nits) | 600-1000 | ||
| View Angle (H./V.) | 160° / 160° | ||
| Contrast Ratio | 20000: 1 | ||
| Scan Mode | 1/60 | 1/45 | 1/64 |
| Max. Power Consumption | 600W/m² | 600W/m² | 600W/m² |
| Avg. Power Consumption | 200W/m² | 200W/m² | 200W/m² |
