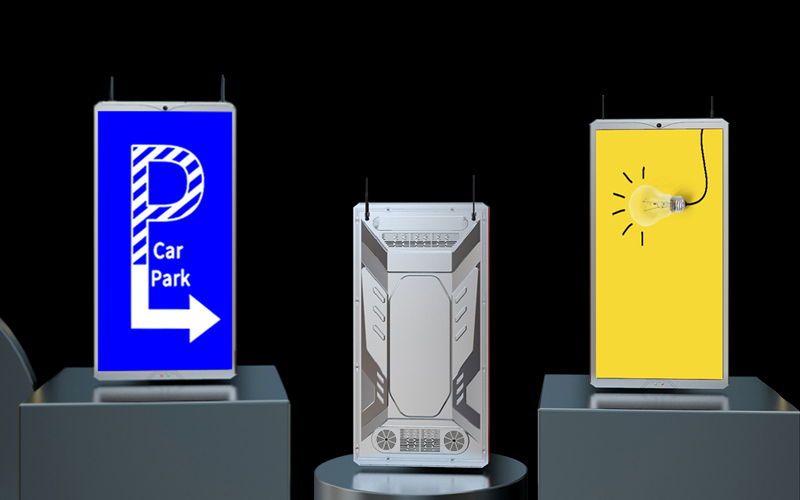

Pole series high brightness up to 6000nits; high resolution and definition of image; intelligent remote cluster control to monitor play status in real-time; plug and play; IP65 for outdoor use. They are highly modular, smart, and sustainable, easy to maintain and installation. Customized design is acceptable.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. Seeing Led Team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
Seeing Led Team
ADSL, 3G, 4G, WIFI, Fiber, and LAN connecting are available. Can be operated via mobile phone, tablet, PC computer.

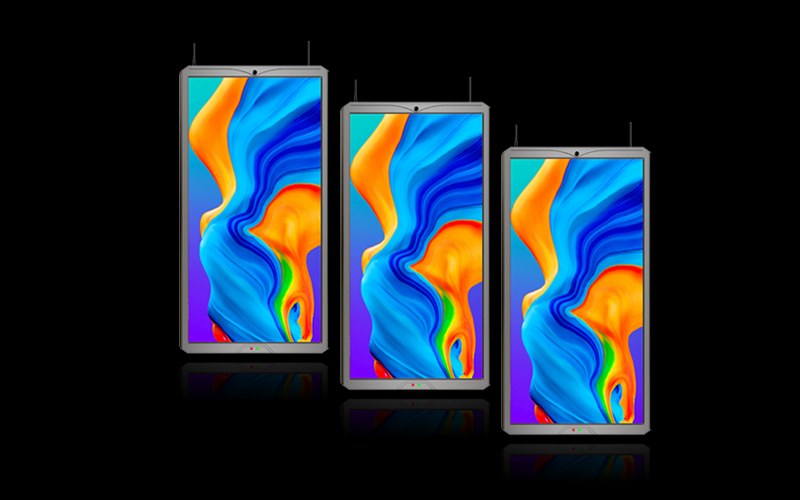

LED Pole Screen is an ideal replacement for the traditional light pole banner. With a cluster controller, the LED displays can be changed the videos or photos by mobile phone or computer in real-time.
The outstanding performance of heat dissipation and waterproof effect make it an all-weather withstanding outdoor smart device that integrates the Internet, Internet of Things, and remote interaction functions into one.
User-friendly, plug and play, easy to operate thanks to the highly intelligent controlling system.

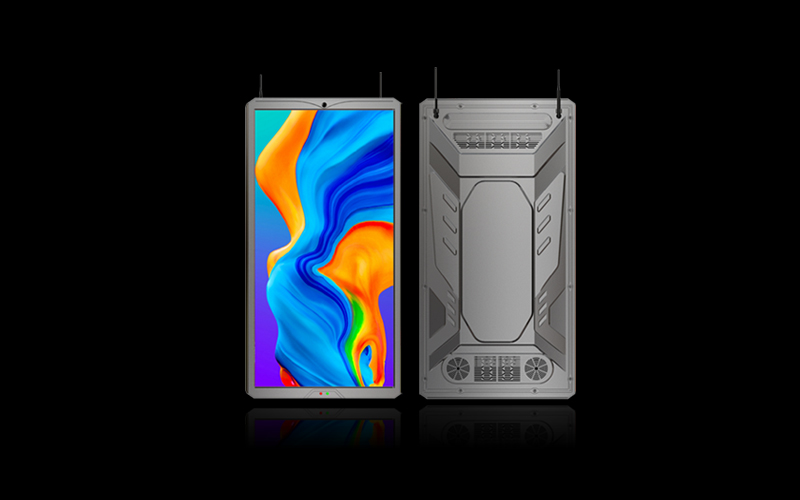

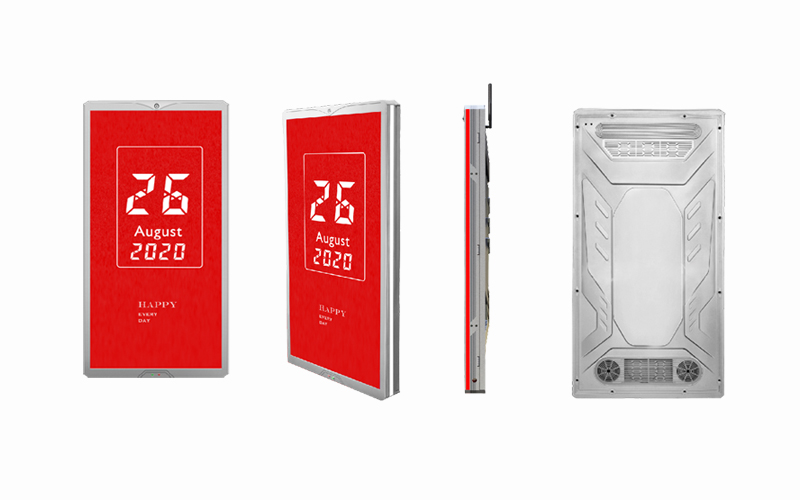

Less heat emission, Big chip LED module, Auto-adjusting brightness function, Heat dissipation efficiency, Optimal layout of power supply and control system, Double quantity of fans, Large ventilation holes , Cable and wires in a straight way
Each panel's working performance such as brightness, voltage, etc could be monitored and adjusted according to working circumstances. It also can auto shutdown, auto restart, and auto brightness adjust.
Item | P3.125 | P3.57 | P3.846 |
Pixel Pitch | 3.125mm | 3.57mm | 3.846mm |
Brightness (nits) | 6000 CD/m² | 6000 CD/m² | 6000 CD/m² |

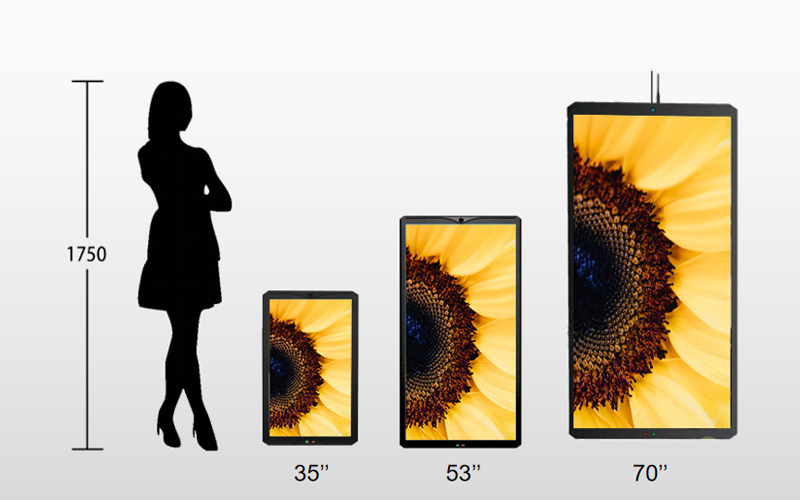

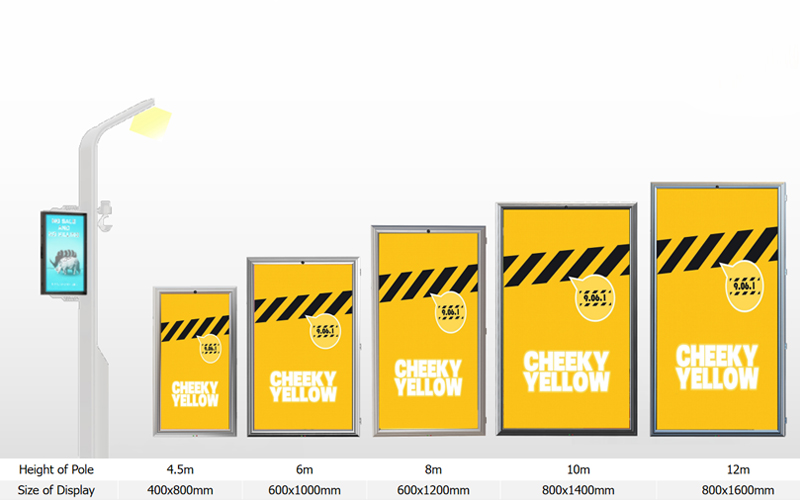

Display Size | 400x800 mm, 600mm x 1200mm, 800x1600 mm | ||
Refresh Frequency | 3840Hz | 3840Hz | 3840Hz |
Power Consumption | 153W (Averagely) | 153W (Averagely) | 153W (Averagely) |
Temperature Control System | Intelligent Air Cooling | Intelligent Air Cooling | Intelligent Air Cooling |
Frame Material | Die-cast magnesium-aluminum alloy | ||
Input Voltage | AC110-230V 50/60Hz | AC110-230V 50/60Hz | AC110-230V 50/60Hz |
Waterproof Level | IP65 | IP65 | IP65 |
Supporting Signal input type | VGA, DVI, HDMI, HD_SDI | VGA, DVI, HDMI, HD_SDI | VGA, DVI, HDMI, HD_SDI |
Working Temperature | - 20℃~+65℃ | - 20℃~+65℃ | - 20℃~+65℃ |
Working Humidity | 10~90% RH | 10~90% RH | 10~90% RH |
Working Life | 100,000 hours | 100,000 hours | 100,000 hours |
Control Mode | 3G / 4G / free Wi-Fi wireless network control / mobile APP control | ||
Maintenance Mode | Rear Maintenance | Rear Maintenance | Rear Maintenance |
Transmission Interface | RJ45 / USB | RJ45 / USB | RJ45 / USB |
Free WIFI Sending Range | ≤30M | ≤30M | ≤30M |
Photoreceptor Level | 0 - 255 | 0 - 255 | 0 - 255 |
Environmental Monitoring | Temperature / Humidity / PM2.5 Optional | ||
Software Language | English | English | English |
