Transparent LED display features in super transparent, super light, high contrast ratio, and high refresh rate, create a more efficient and valuable urban media. It can be installed behind glass windows, glass curtain walls, or hung in the air. Transparent LED displays can be applied to building glass walls, such as airports, banks, hotels, shopping malls, 4S stores, luxury stores, etc. The LED transparent screen adopts stunning transparent glass display technology, which takes advantage of the business environments such as glass windows, glass curtain walls, large indoor shopping malls, and other locations as far as possible. It can attract customers quickly and accurately but maintain the original appearance of the location.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. Seeing Led Team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
Seeing Led Team
Ultralight Product weight 15KG/㎡, fully meets the glass curtain wall load demand. Presence Product permeability is greater than 65.
Maintenance is fast and convenient, saving manpower and material resources. Only a simple steel frame structure is required, which saves a lot of costs: This product does not need complex supporting steel structure, and it adopts seamless integration of one-piece large glass screen.
Super power saving the power consumption is only 1/3 of the conventional display. Highly transparent acrylic material, resistant, stretch resistant, impact resistant. Typical life (hrs) 100000.
Attached to the back of the glass; The weight per square is around 12kg; Flexible movement according to the requirements of the site and the design requirements.

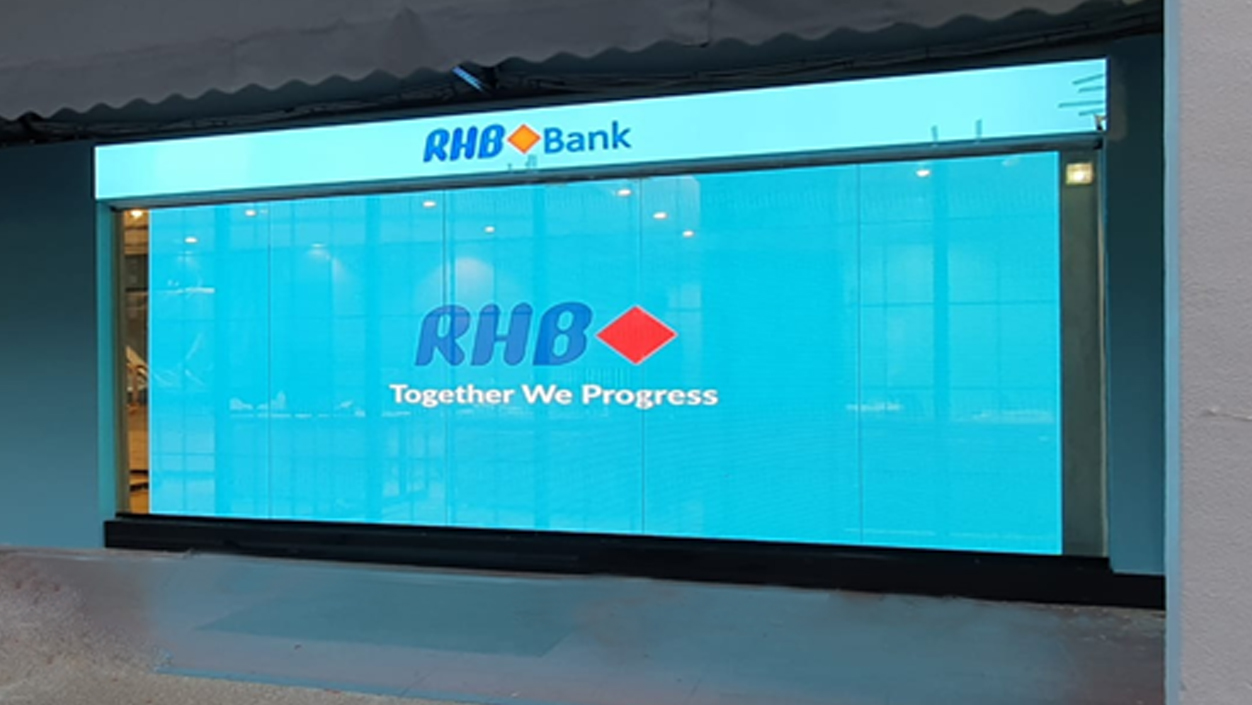

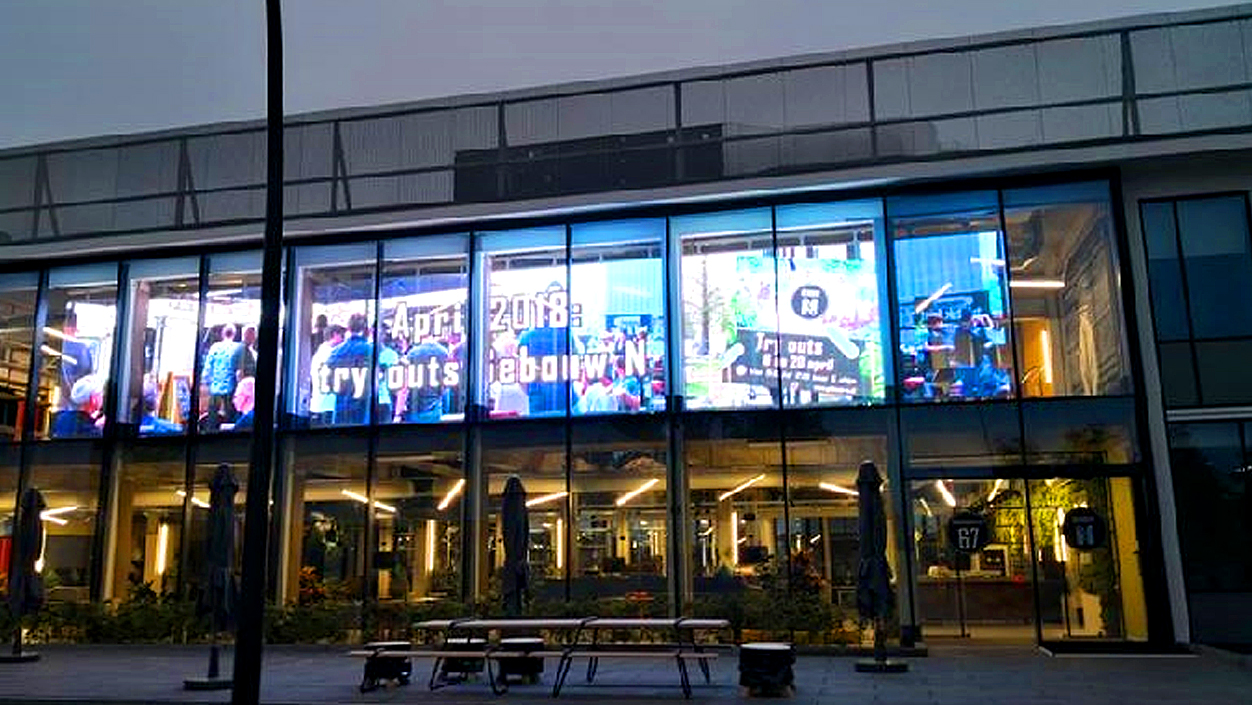

Urban CBD, large shopping malls, transportation hubs, glass windows, commercial exhibitions, etc.
Support multiple installation, hanging, stacking, and fixed installation.
| ITEM | P3.9-7.8(Indoor) | P7.8-7.8(Indoor) | P10.4-10.4(Indoor) | P3.9-7.8(Outdoor) | P10.4-10.4(Outdoor) |
| Pixel Pitch (mm) | 3.9-7.8mm | 7.8-7.8mm | 10.4-10.4mm | 3.9-7.8mm | 10.4-10.4mm |
| Module Resolution | 128x16 | 64x16 | 48x12 | 128x16 | 48x12 |
| Module Size (WxH) | 500 x 125 | ||||
| Pixel Density (pixels/m²) | 32256 dots/㎡ | 16384 dots/㎡ | 9216dots/㎡ | 32256 dots/㎡ | 9216dots/㎡ |
| Cabinet Size (WxH) | 500 x 1000 x 71 | ||||
| Cabinet Weight (kg/pc) | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 |
| Cabinet Material | Aluminum | ||||
| Ingress Protection | IP30 | IP30 | IP30 | IP65 | IP65 |
| Maintenance | Front | Front | Front | Front | Front |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Brightness (nits) | 4500-5000nits | 4500-5000nits | 4500-5000nits | 5000nits | 5000nits |
| View Angle (H./V.) | 160° / 160° | ||||
| Contrast Ratio | 5000;1 | 5000;1 | 5000;1 | 5000;1 | 5000;1 |
| Scan Mode | 1/8 | 1/4 | 1/3 | 1/8 | 1/2 |
| Max. Power Consumption | 800W/m² | 800W/m² | 800W/m² | 800W/m² | 800W/m² |
| Avg. Power Consumption | 260W/m² | 260W/m² | 260W/m² | 260W/m² | 260W/m² |
