Shine series has perfect display performance, Superb visuals are created with the help of a high refresh rate, outstanding color processing, and a great contrast ratio.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. Seeing Led Team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
Seeing Led Team
Shine series supports HDR display technology, is stable, and clearly presents high-quality video.
Safety protection design, high reliability, and long service life

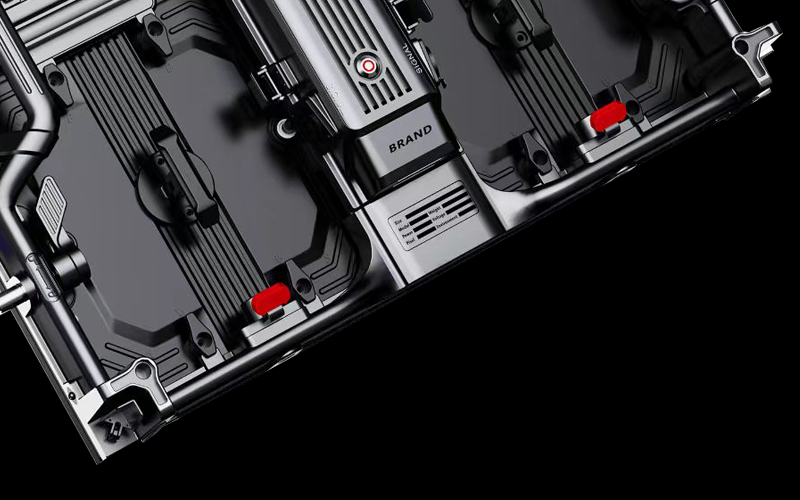

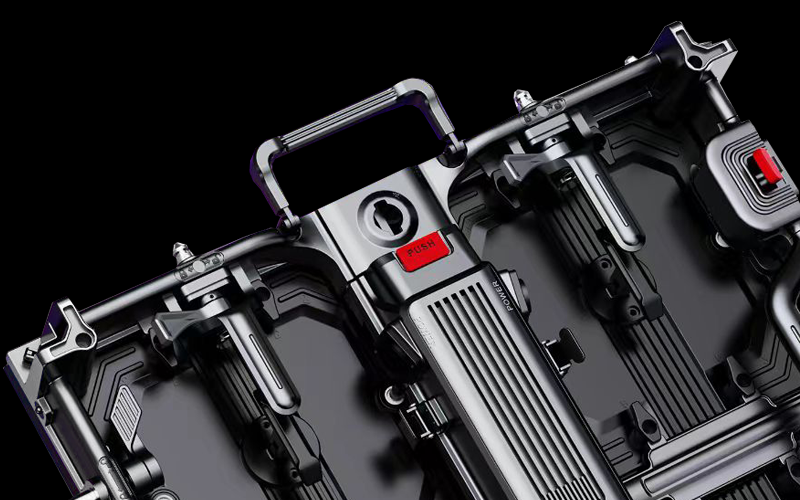

Auto-locking system for fast and easy one-man installation with ultimate safety and pixel protection. Auto-ejection lock system enables super fast, easy, and convenient disconnection of panels

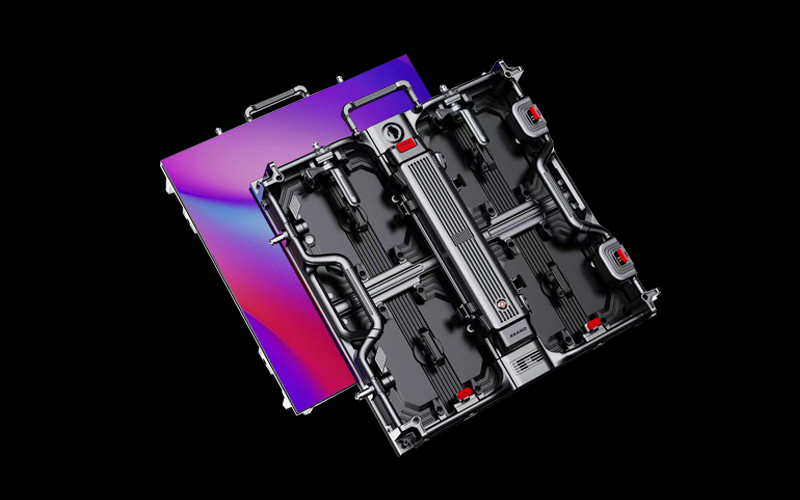

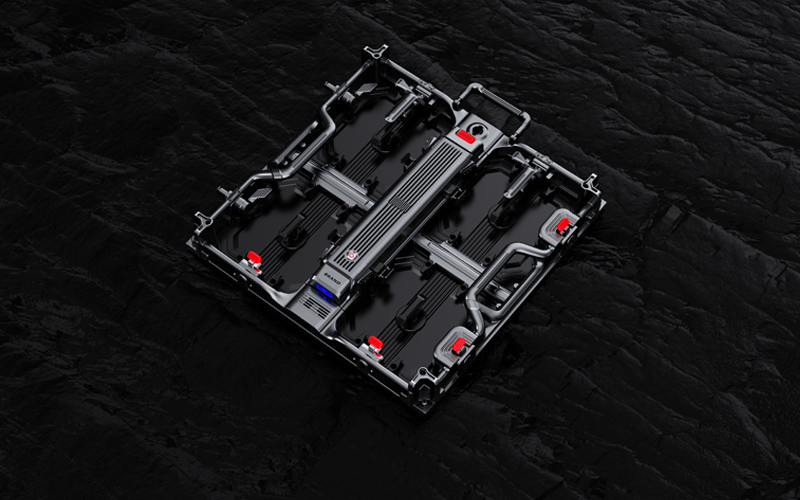

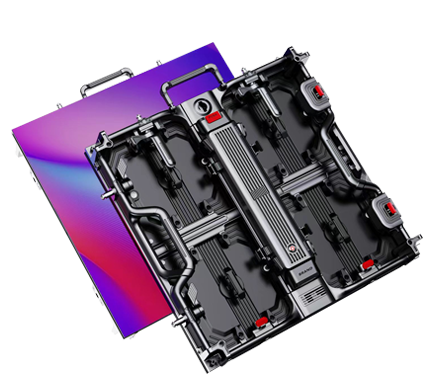

It has a smart structure design and fast and flexible installation. The cabinet or each module is very light and thin. The die-cast aluminum cabinet adopts CNC fine processing to make dimensional tolerance less than 0.1mm

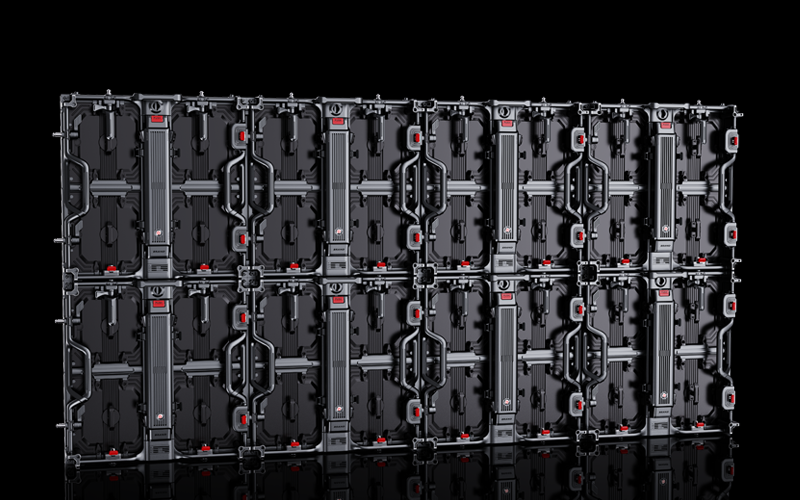

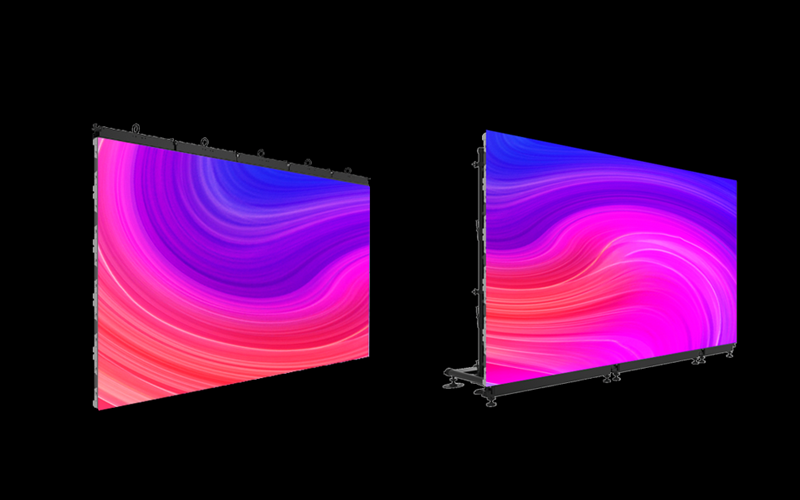

Support multiple installation, hanging, stacking, and fixed installation
Each screen can be maintained or serviced from the front side, which makes it much quicker and easier. The front maintenance is 5 times faster than the rear.
| ITEM | P2.6(Indoor) | P3.91(Indoor) | P2.97(Outdoor) | P3.91(Outdoor) | P4.81(Outdoor) |
| Pixel Pitch (mm) | 2.6mm | 3.91mm | 2.97mm | 3.91mm | 4.81mm |
| Module Resolution | 96x96 | 64x64 | 84x84 | 64x64 | 52x52 |
| Module Size (WxH) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Pixel Density (pixels/m²) | 36,864 | 16,384 | 28,224 | 16,384 | 10,816 |
| Cabinet Size (WxH) | 500 x 500 x 68 / 500 x 1000 x 68 | ||||
| Cabinet Weight (kg/pc) | 6.5 | 6.5 | 7/12 | 7/12 | 7/12 |
| Cabinet Material | Die-Cast Aluminum | ||||
| Ingress Protection | IP30 | IP30 | IP65 | IP65 | IP65 |
| Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Brightness (nits) | 800-1200nits | 800-1200nits | 2500-4500nits | 2500-4500nits | 2500-4500nits |
| View Angle (H./V.) | 160° / 160° | ||||
| Contrast Ratio | 5000;1 | 5000;1 | 5000;1 | 5000;1 | 5000;1 |
| Scan Mode | 1/32 | 1/16 | 1/21 | 1/16 | 1/13 |
| Max. Power Consumption | 600W/m² | 600W/m² | 600W/m² | 600W/m² | 600W/m² |
| Avg. Power Consumption | 200W/m² | 200W/m² | 200W/m² | 200W/m² | 200W/m² |
