As a customized display made of die-cast aluminum, the Air Series is very light and thin, has high-temperature resistance, and high stability, is adaptable to various environments, is not easy to damage, and is very simple to install and dismantle, which is easy to transport and carry and greatly reduces the user's transportation costs and maintenance costs.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. Seeing Led Team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
Seeing Led Team

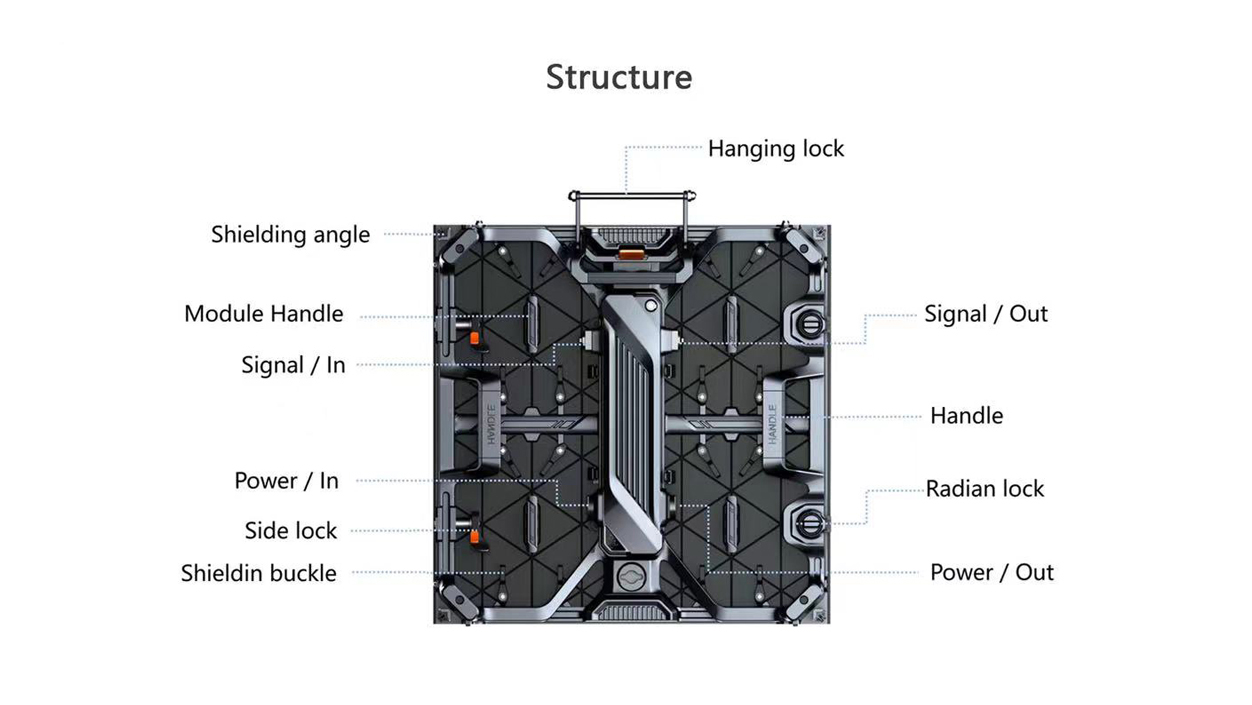

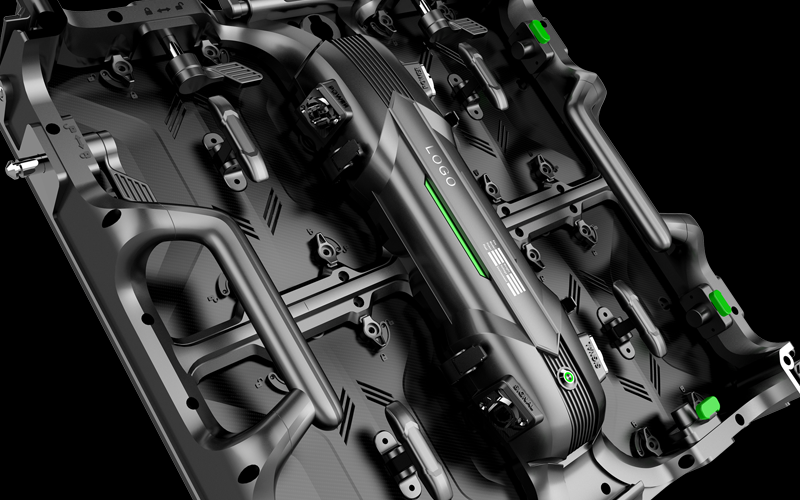

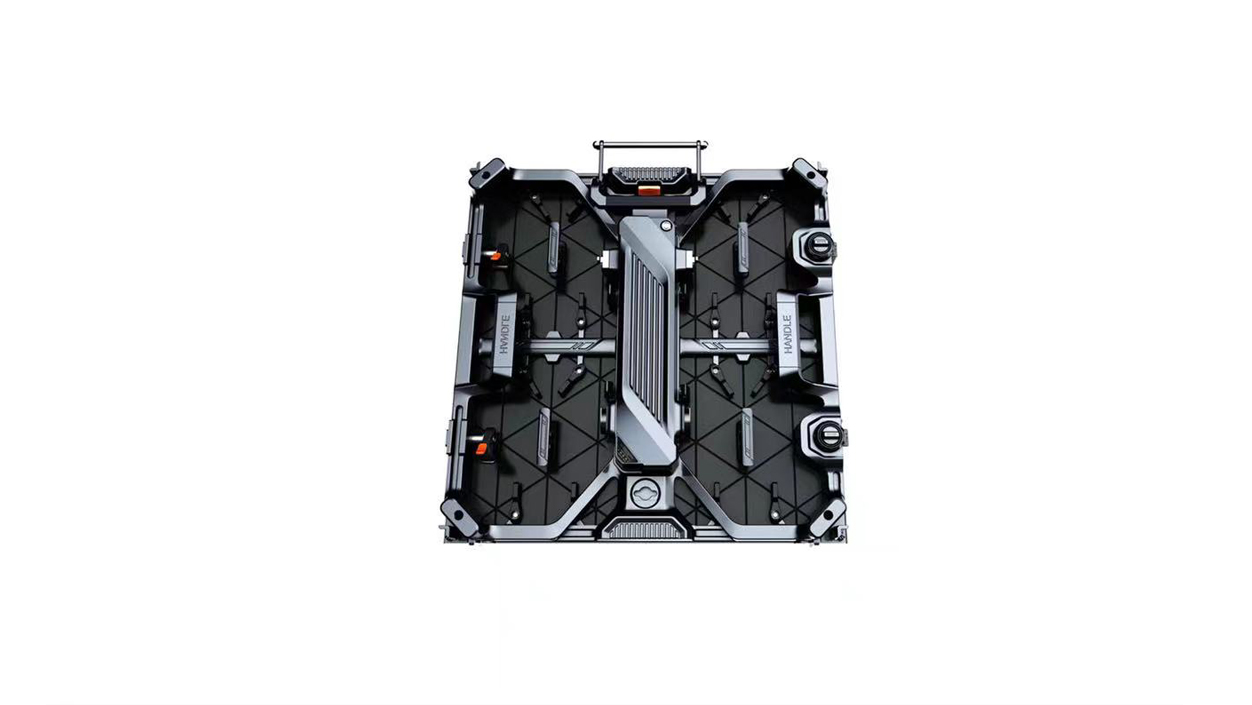

lt‘s portable handle design makes it easy to hold and carry. The die-cast aluminum cabinet weighs only 6.5kg and is easy to lift with just one hand. Customers can benefit from its low weight saving money from transport and installation costs.

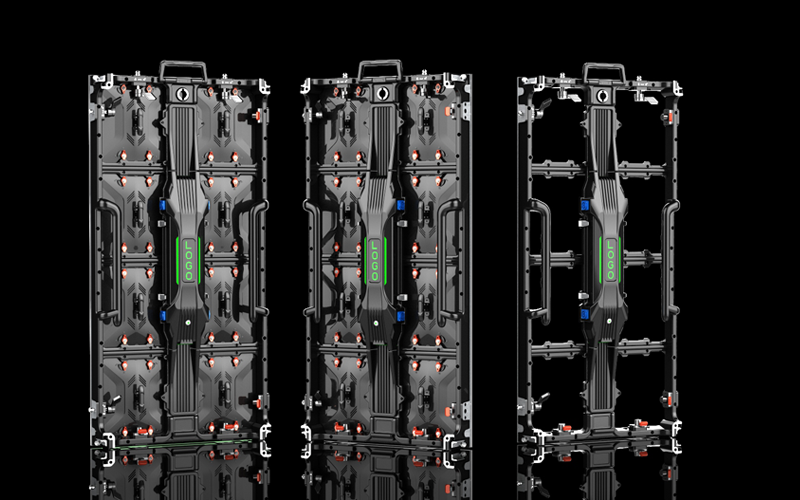

Different pixel modules can be used on one frame, saving customers money on products, accessories, and training.

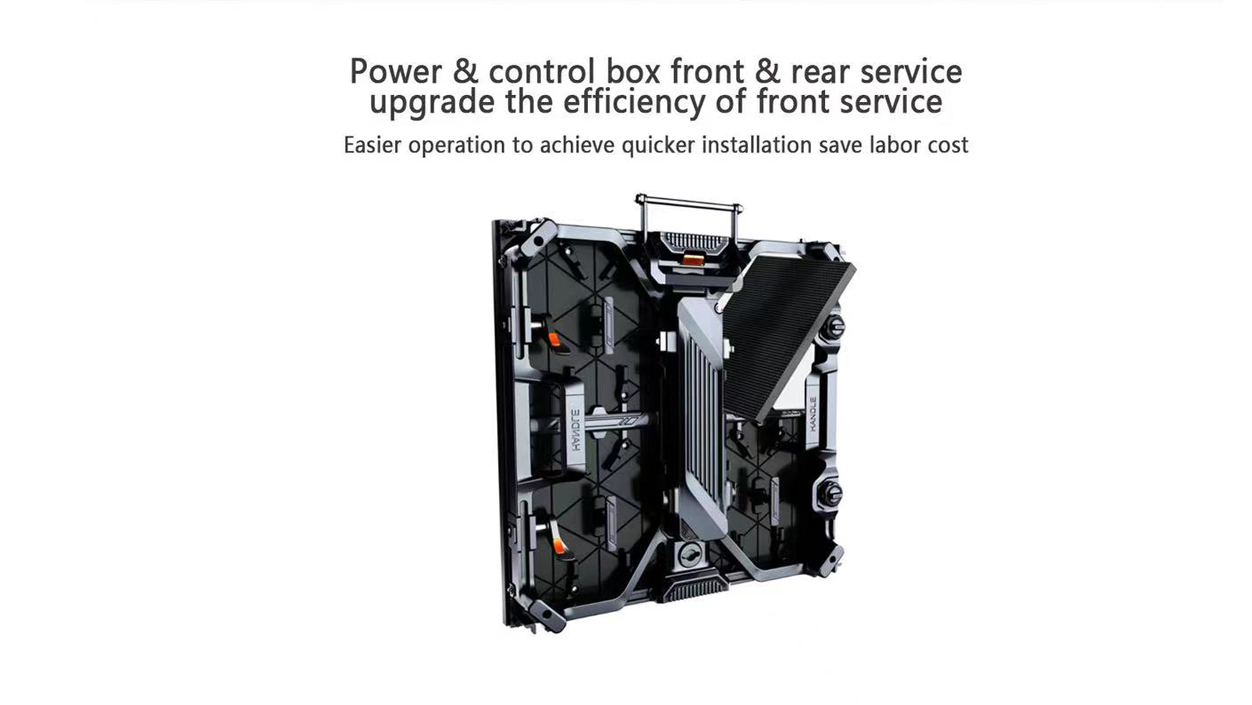

Modules and PSU box support front or rear maintenance, the integrated PSU unit makes repair and replacement of spare parts easy and cost-effective.
Smart module with flash memory function which can save module calibration data.

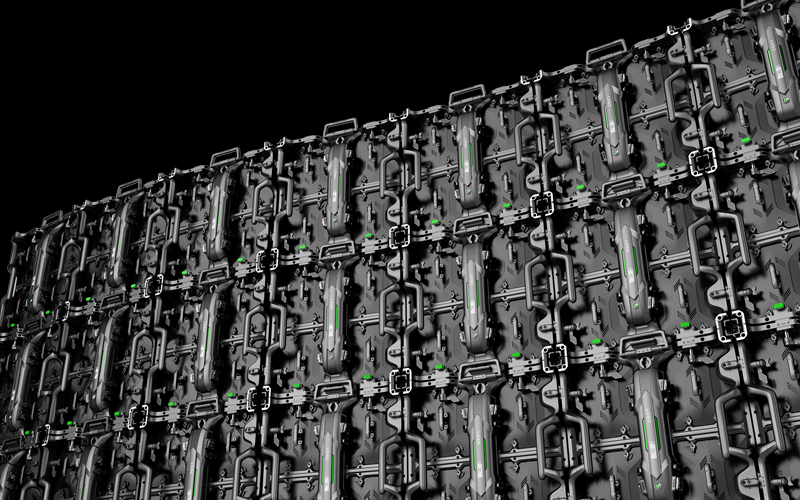

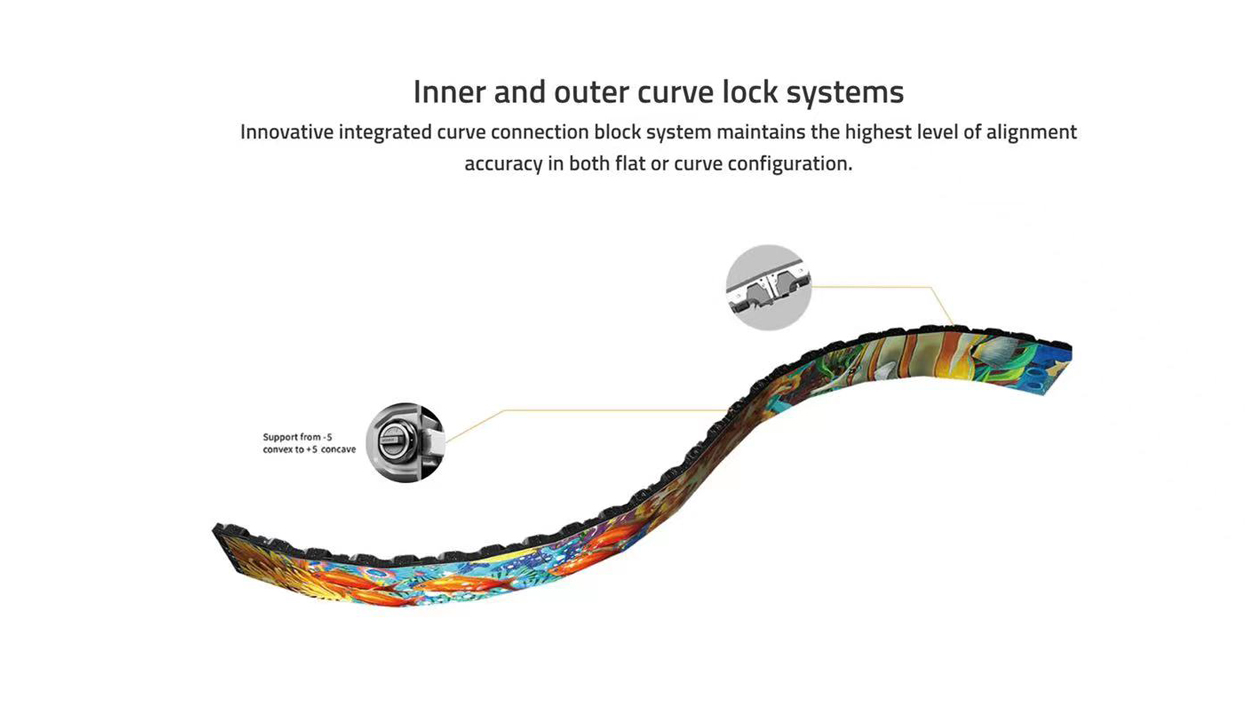

Air series supports concave or convex curved screen setups to achieve creative display projects; support -6° convex to + 6° concave, 3*/unit

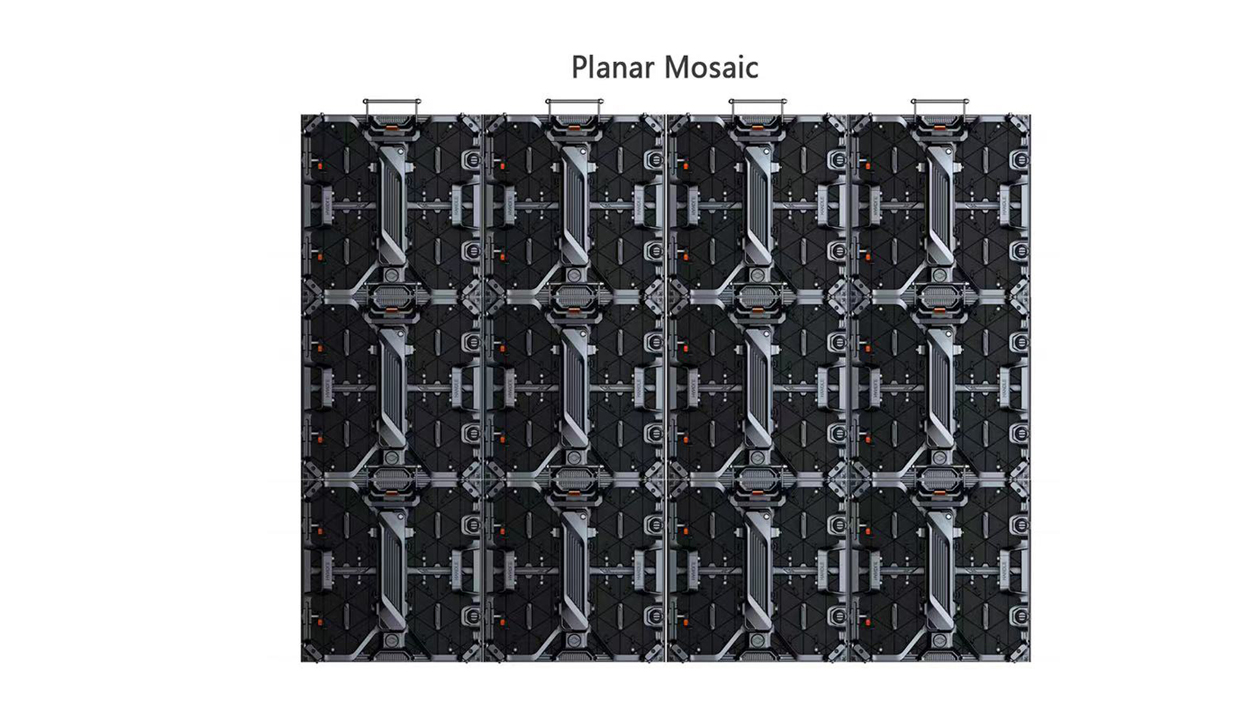

The positioning pin and magnets help with accurate and fastpanel adjustment ensuring seamless screen assembly. A simple and quick lock system allows one to install the panel with one hand.
| ITEM | P2.6(Indoor) | P3.91(Indoor) | P2.97(Outdoor) | P3.91(Outdoor) | P4.81(Outdoor) |
| Pixel Pitch (mm) | 2.6mm | 3.91mm | 2.97mm | 3.91mm | 4.81mm |
| Module Resolution | 96x96 | 64x64 | 84x84 | 64x64 | 52x52 |
| Module Size (WxH) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Pixel Density (pixels/m²) | 36,864 | 16,384 | 28,224 | 16,384 | 10,816 |

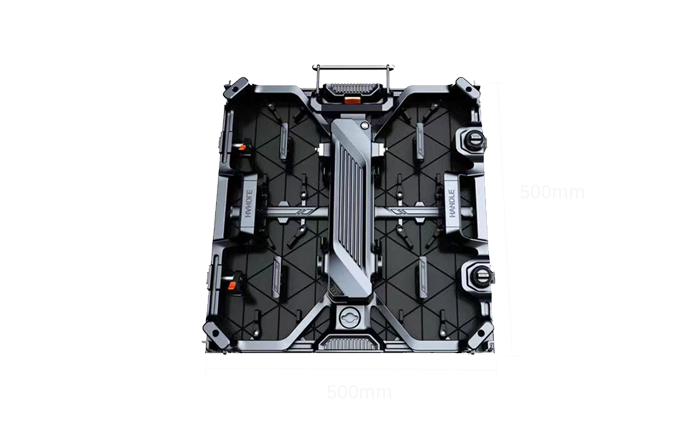

| Cabinet Size (WxH) | 500 x 500 x 68 | ||||
| Cabinet Weight (kg/pc) | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Cabinet Material | Die-Cast Aluminum | ||||
| Ingress Protection | IP30 | IP30 | IP65 | IP65 | IP65 |
| Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Brightness (nits) | 800-1200nits | 800-1200nits | 2500-4500nits | 2500-4500nits | 2500-4500nits |
| View Angle (H./V.) | 160° / 160° | ||||
| Contrast Ratio | 5000;1 | 5000;1 | 5000;1 | 5000;1 | 5000;1 |
| Scan Mode | 1/32 | 1/16 | 1/21 | 1/16 | 1/13 |
| Max. Power Consumption | 600W/m² | 600W/m² | 600W/m² | 600W/m² | 600W/m² |
| Avg. Power Consumption | 200W/m² | 200W/m² | 200W/m² | 200W/m² | 200W/m² |
