Our Turo series is one of the most innovative and unique. The product has a low maintenance cost, not only convenient and quick installation and disassembly but also cost advantages. The cabinet is light in weight and requires low installation costs; the cabinet has low power consumption, saves operating costs, reduces labor costs, and has strong versatility. The frames are common, which can save the production cycle and add very high value to customers. It can effectively improve the income of customers and is suitable for large-scale production of stage backgrounds, so our products can better help you solve leasing problems
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. Seeing Led Team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
Seeing Led Team
Adopts anti-collision design to avoid direct collision between LEDs and the ground, thereby effectively protecting the LEDs on the edge.

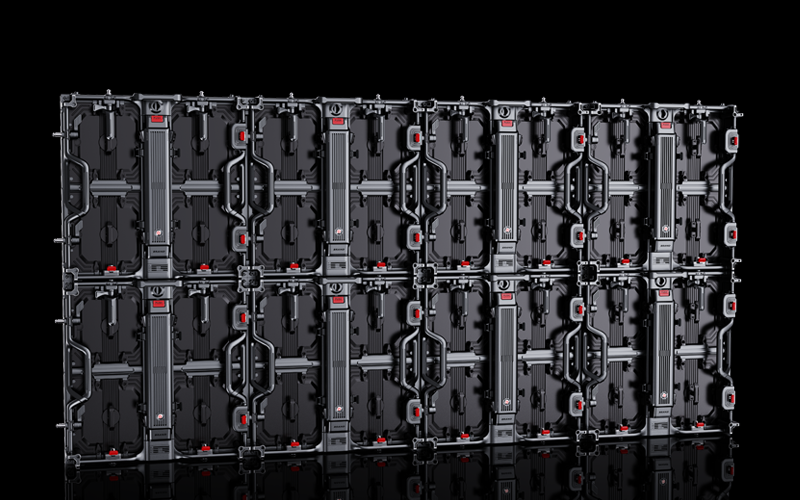

The Turo series supports hanging, stacking, and wall-mounted installations, making it adaptable to various scenarios. Turo series adopts a modular design to realize modules and PSU box support front or rear maintenance.
Each component can be quickly disassembled & assembled, improving maintenance efficiency. Control box removal takes only 1 second.

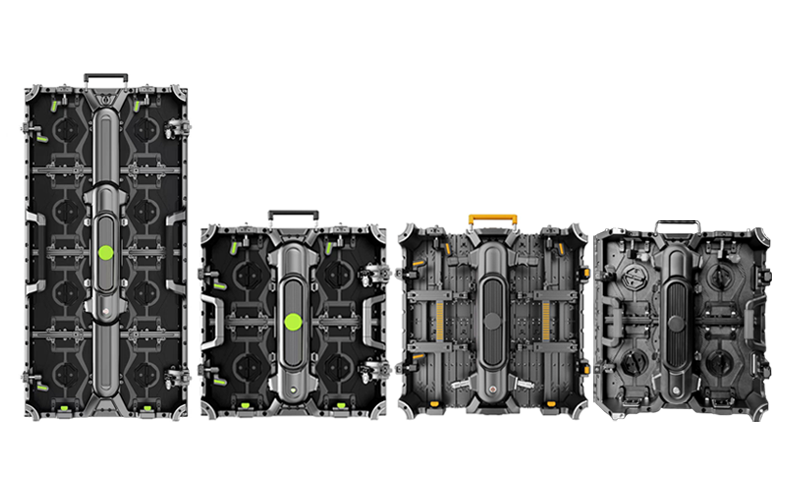

The Turo series supports concave and convex connections to create various shapes and build a more creative stage. For indoor rental applications, the combination of flexible cabinets and conventional cabinets results in “ever-changing curved surface modeling”. The splicing is simple and fast. The transition on the display surface of the screen is extremely smooth, solving problems such as uneven transition when traditional angle-locked cabinets are spliced.
Turo series of all products have a standard refresh rate of 3840Hz, providing better screen performance in the camera, and more accurately rendered images.
Different pixel modules can be used on one frame, saving customers money on products, accessories, and training. (only indoor to indoor, outdoor to outdoor)
| ITEM | P2.6(Indoor) | P3.91(Indoor) | P2.97(Outdoor) | P3.91(Outdoor) | P4.81(Outdoor) |
| Pixel Pitch (mm) | 2.6mm | 3.91mm | 2.97mm | 3.91mm | 4.81mm |
| Module Resolution | 96x96 | 64x64 | 84x84 | 64x64 | 52x52 |
| Module Size (WxH) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Pixel Density (pixels/m²) | 36,864 | 16,384 | 28,224 | 16,384 | 10,816 |
| Cabinet Size (WxH) | 500 x 500 x 71 / 500 x 1000 x 71 | ||||
| Cabinet Weight (kg/pc) | 6.5 | 6.5 | 7/12 | 7/12 | 7/12 |
| Cabinet Material | Die-Cast Aluminum | ||||
| Ingress Protection | IP30 | IP30 | IP65 | IP65 | IP65 |
| Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Brightness (nits) | 800-1200nits | 800-1200nits | 2500-4500nits | 2500-4500nits | 2500-4500nits |
| View Angle (H./V.) | 160° / 160° | ||||
| Contrast Ratio | 5000;1 | 5000;1 | 5000;1 | 5000;1 | 5000;1 |
| Scan Mode | 1/32 | 1/16 | 1/21 | 1/16 | 1/13 |
| Max. Power Consumption | 600W/m² | 600W/m² | 600W/m² | 600W/m² | 600W/m² |
| Avg. Power Consumption | 200W/m² | 200W/m² | 200W/m² | 200W/m² | 200W/m² |
