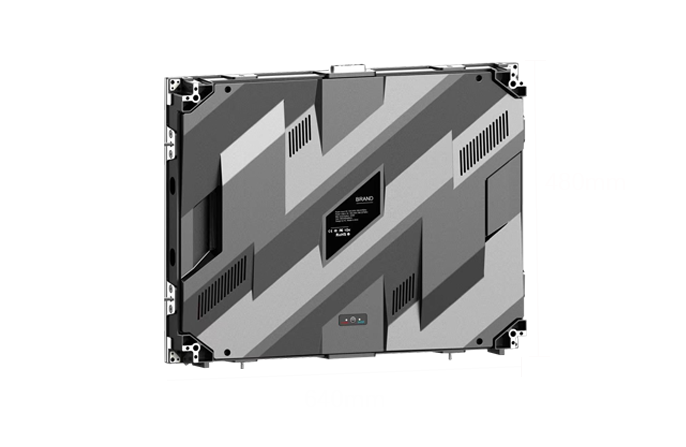

SD series has significant advantages in resolution, color performance, viewing angle, energy saving, and environmental protection, as well as reliability, so it is widely used in a variety of commercial displays, advertising and publicity, conference displays, and other occasions.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. Seeing Led Team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
Seeing Led Team

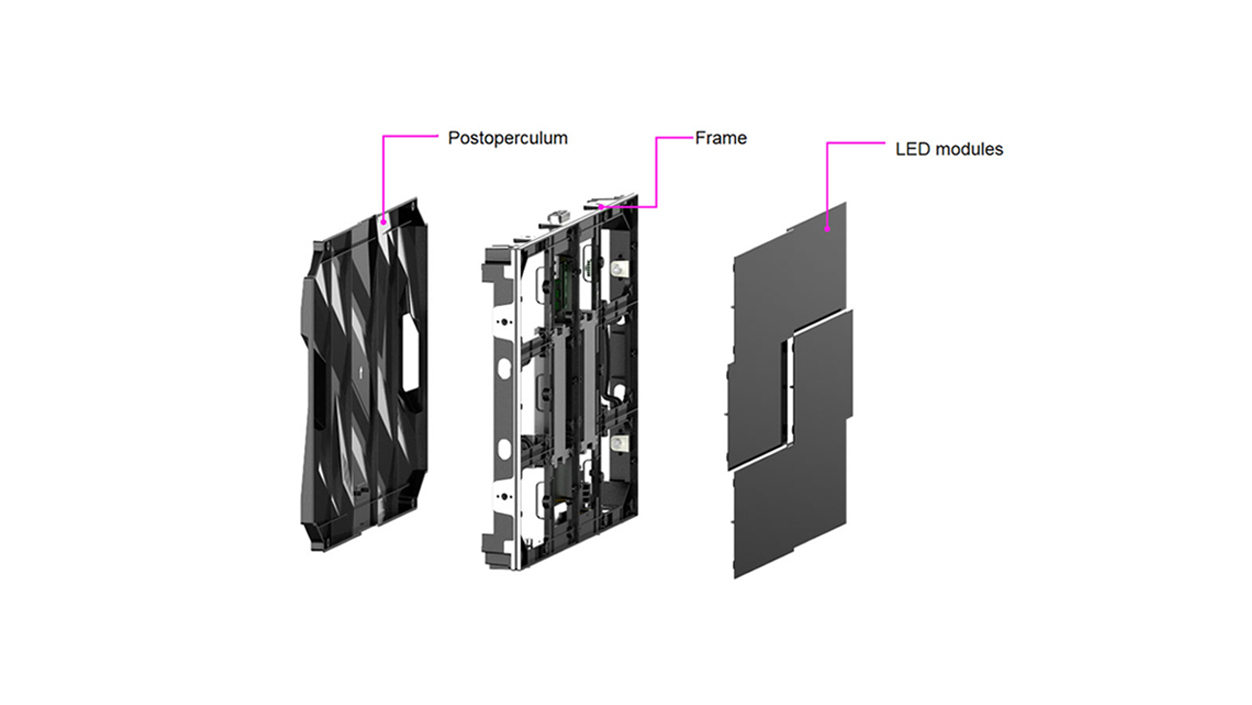

Internal wiring without exposed cables stabilizes signal and electricity transmission, and meanwhile generates a more pleasing appearance.

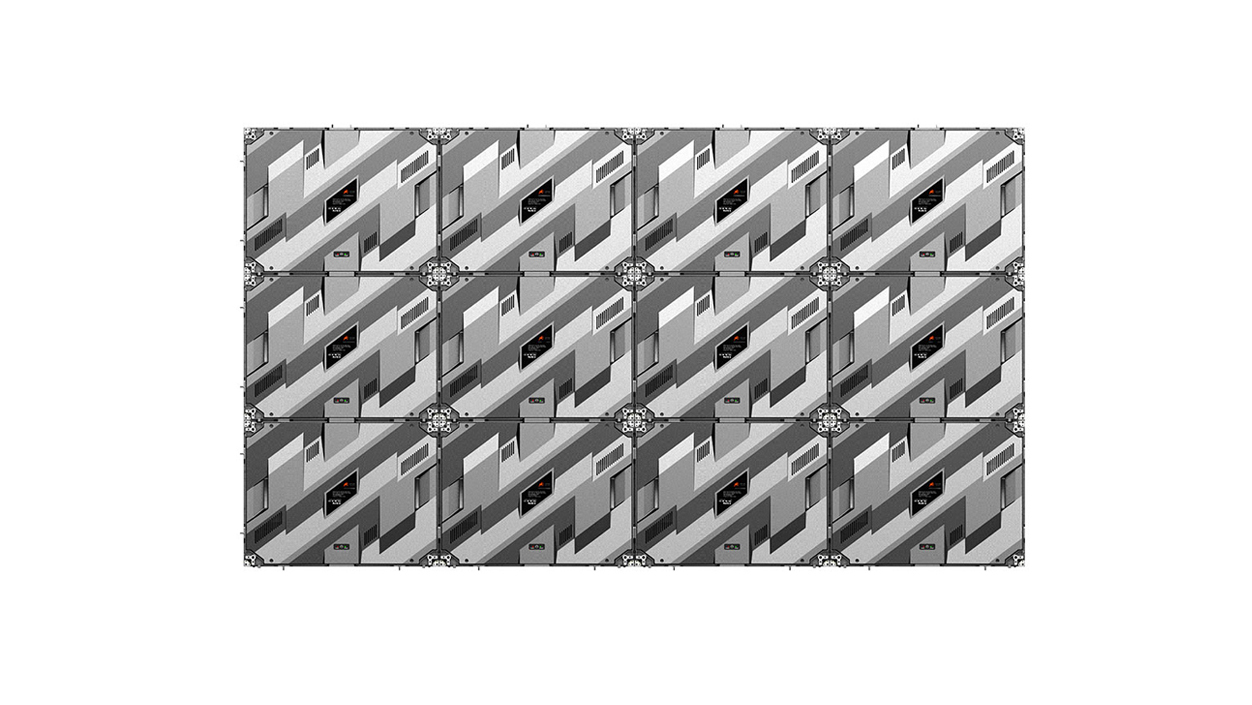

Optional integrated plugin connection between cabinets speeds up splicing efficiency and stabilizes transmission as well. Cables can also be connected between cabinets to reduce costs.

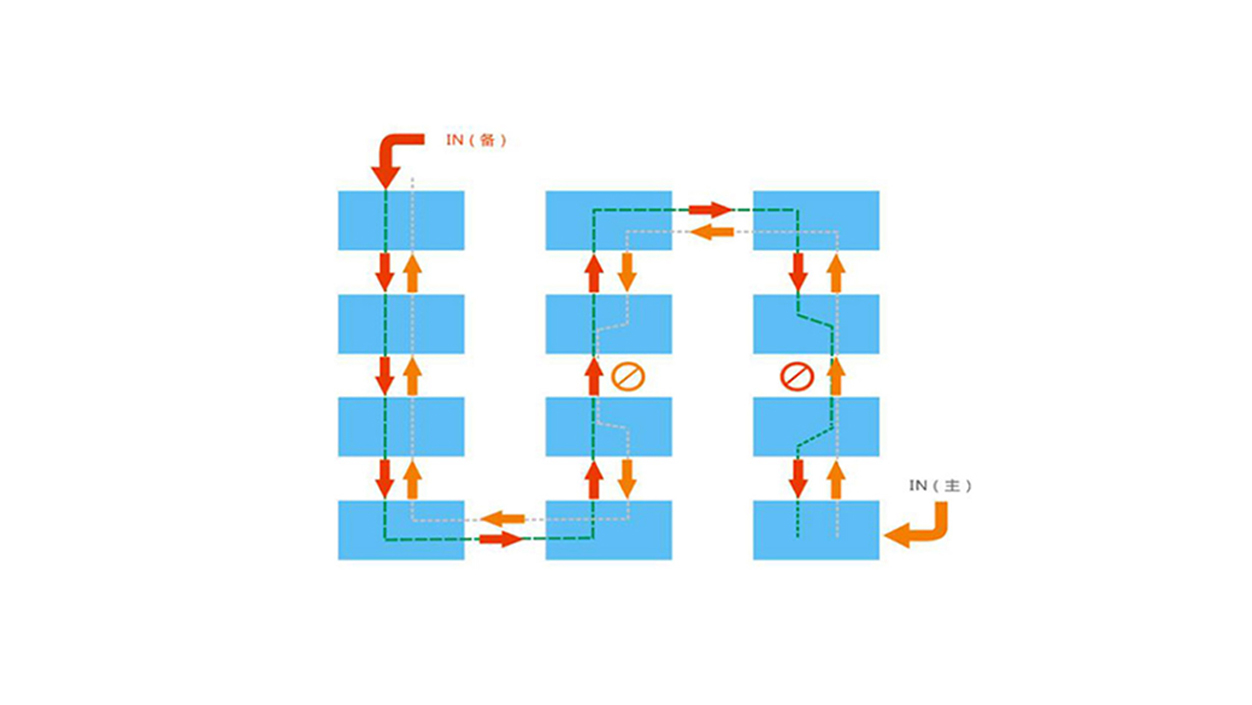

Support power and signal double backup design plan Black screen won't appear even if one of the power,card and signal go wrong. More reliable and more suitable for the important projection like security monitoring, exhibition hall display and the enterprise meeting.

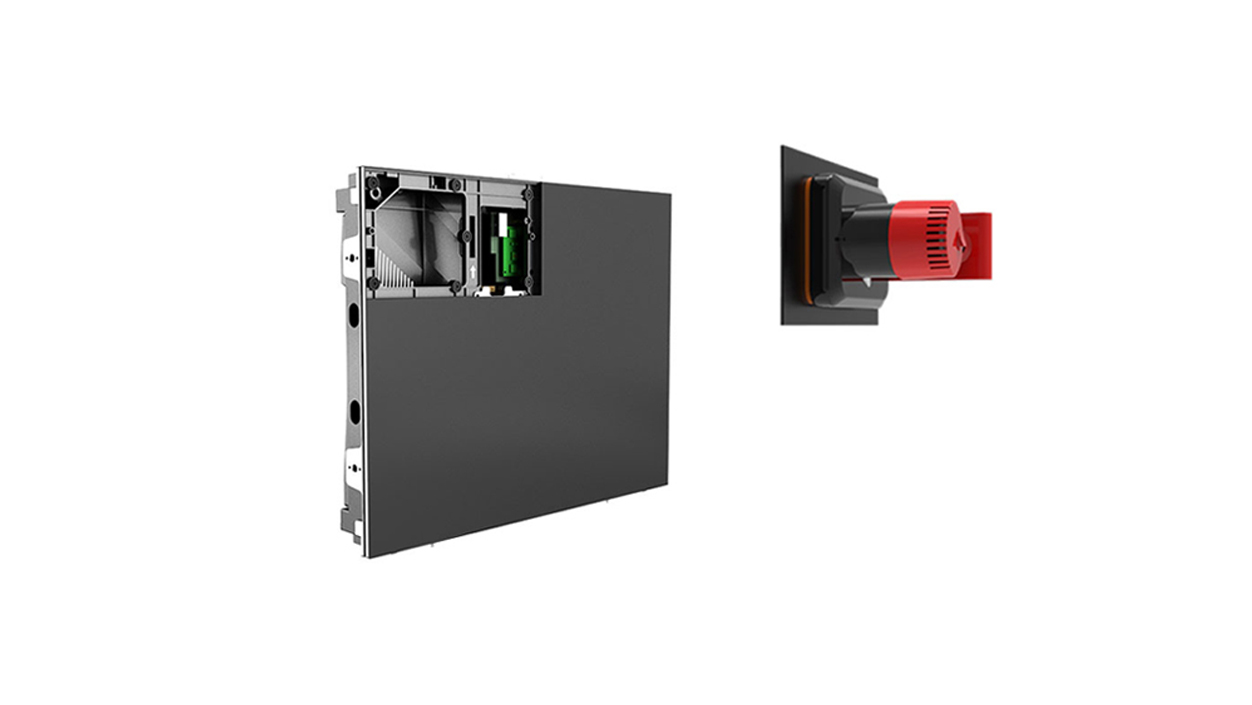

LED modules front service for easy maintenance. The innovative vacuum suction tool prevents damage to the LEDs during maintenance.
Front and rear maintenance for module, power and system.

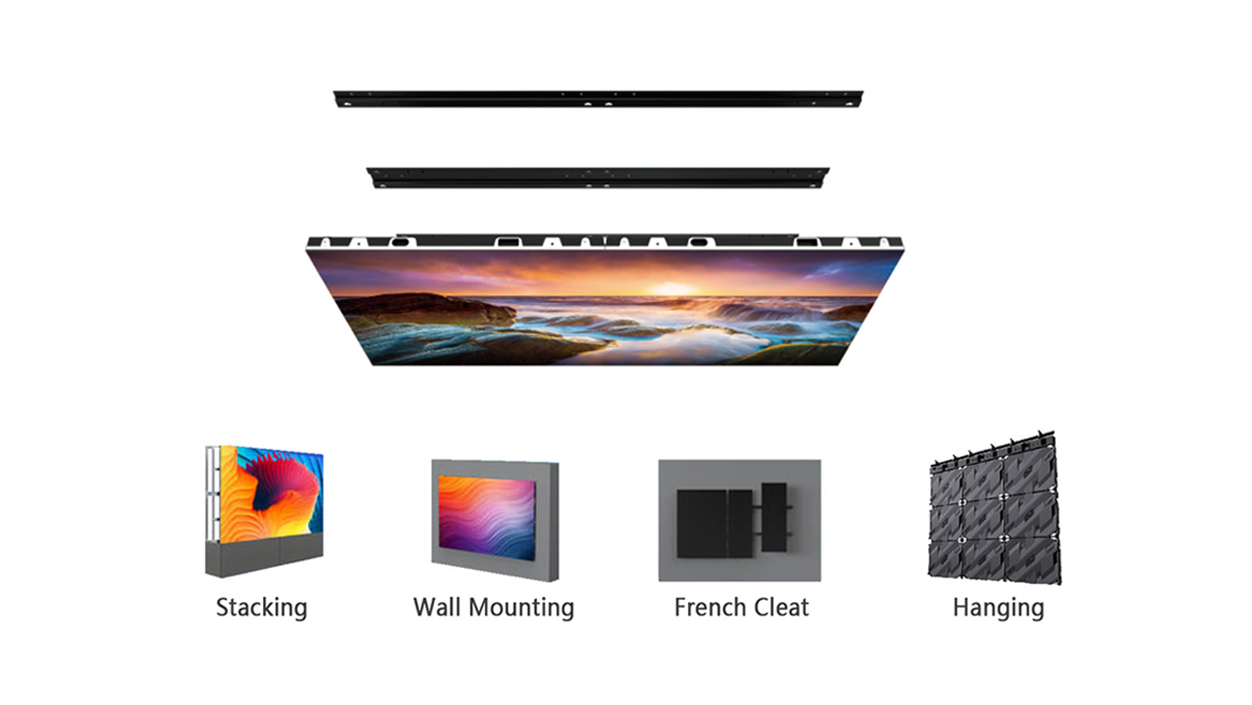

Wall mount, stack or hang VMQ LED video wall panels in total thickness ≤100mm and with fast interlocking.
| Item | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| Pixel Pitch (mm) | 1.25mm | 1.53mm | 1.86mm | 2mm | 2.5mm |
| Module Resolution | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 |
| Module Size (WxH) | 320*160mm | ||||
| Pixel Density (pixels/m²) | 640000 | 422753 | 288906 | 250000 | 160000 |
| Cabinet Size (WxH) | 640*480*68mm | ||||
| Cabinet Weight (kg/pc) | 7.5 | ||||
| Cabinet Material | Die Casting Aluminum | ||||
| Ingress Protection | IP30 | ||||
| Maintenance | Front/Rear | ||||
| Refresh Rate (Hz) | 3840 | ||||
| Brightness (nits) | 300-500 | 400-600 | 500-800 | 500-800 | 600-900 |
| View Angle (H./V.) | 160° / 160° | ||||
| Contrast Ratio | 8000;1 | ||||
| Max. Power Consumption | 450W/m² | ||||
| Avg. Power Consumption | 225W/m² | ||||
