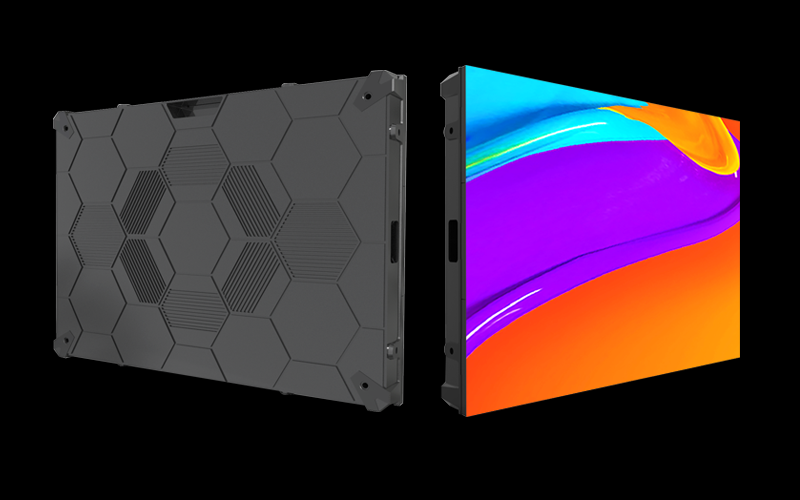

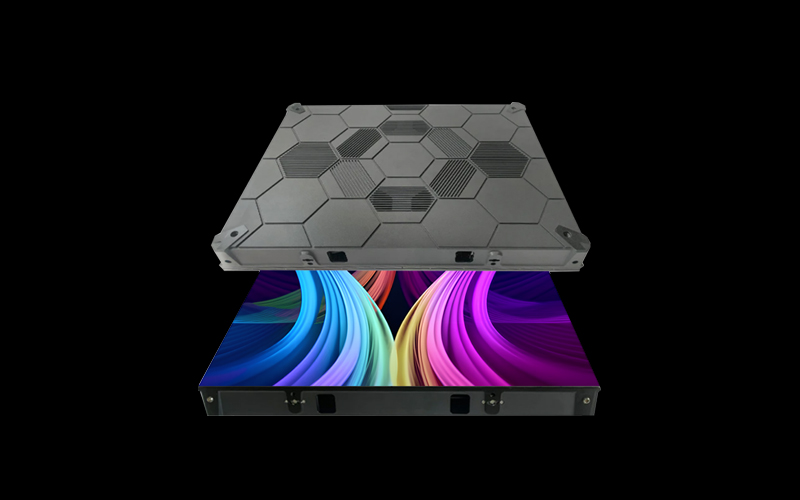

K Series has the frame of a honeycomb. The cabinets are made precisely through CNC machines and are capable of keeping firm in structure when under stress, and dissipating heat quickly. Inside the structure, all modules are mounted directly, and cordlessly. It also allows a redundancy system and PSU unit.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. Seeing Led Team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
Seeing Led Team
RGB deep gray processing, with high contrast and gray level, high-definition and delicate picture, rich color, clear and natural picture;
CNC machining, high precision of the case, and good flatness of the screen splicing.

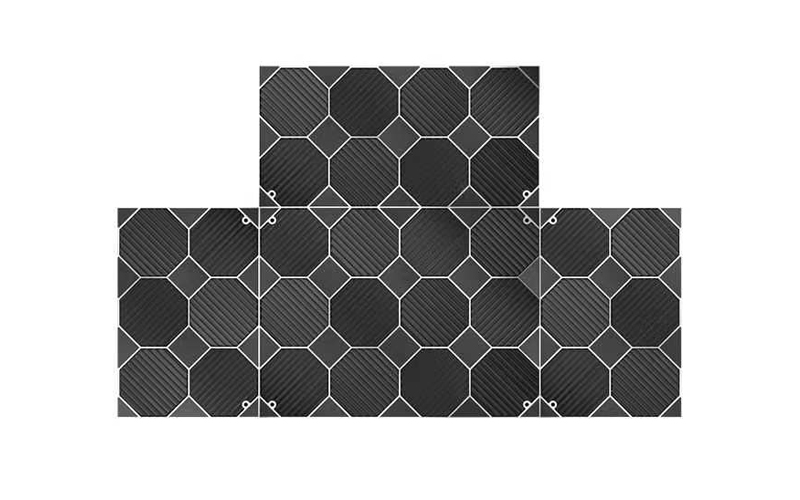

K Series cabinets are easy and simple to put up in various installation environments, saving time and costs.
LED modules front service for easy maintenance. The innovative vacuum suction tool prevents damage to the LEDs during maintenance.

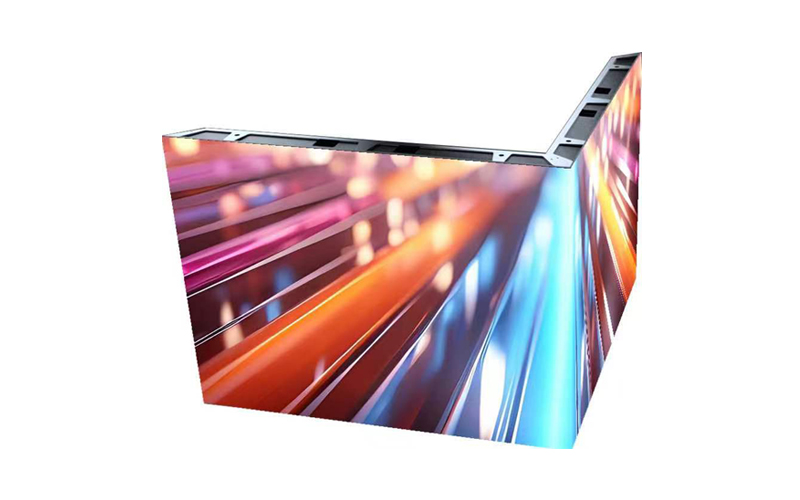

K Series is also tailor-made for specific demands in sizes. which, currently supports only separate connection of power and signal ports.
Multiple mounting options for easy selection
| Item | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| Pixel Pitch (mm) | 1.25mm | 1.53mm | 1.86mm | 2mm | 2.5mm |
| Module Resolution | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 |
| Module Size (WxH) | 320*160mm | ||||
| Pixel Density (pixels/m²) | 640000 | 422753 | 288906 | 250000 | 160000 |
| Cabinet Size (WxH) | 640*480*48.5mm | ||||
| Cabinet Weight (kg/pc) | 7.5 | ||||
| Cabinet Material | Die-cast aluminum | ||||
| Ingress Protection | IP32 | ||||
| Maintenance | Front | ||||
| Refresh Rate (Hz) | 3840 | ||||
| Brightness (nits) | 500-600nits | ||||
| View Angle (H./V.) | 120° / 140° | ||||
| Contrast Ratio | 5000:1 | ||||
| Max. Power Consumption | 500W/m² | ||||
| Avg. Power Consumption | 165-260W/m² | ||||
